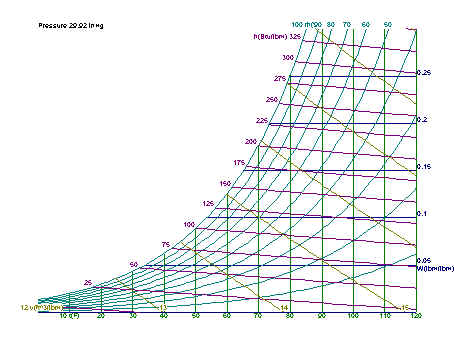

Psychrometric Chart for Nitrogen - Methanol Mixtures

Bring the power of psychrometric calculations to nonaqueous gas-solvent mixtures.  The Akton Psychrometric Chart provides for the user to change the constants within the Function Library (PFL) and allows the user to construct a chart for Gas/Solvent Mixtures rather than Air/Water.


Sources for Constants Shown Below:

Specific Heat, Cp-N2
A.  28.90
B.  -0.1571x10-2
C.  0.8081x10-5
D.  -1.966x10-9

Range 273-1800 K
Ave Error  .34
Max Error  .59

Specific Heat, Cp-CH3OH
A.  19.0
B.  9.152x10-2
C.  -1.22x10-5
D.  -8.039x10-9

Range 273-1000 K
Ave Error  0.08
Max Error 0.18
Source: Chemical & Process Thermodynamics
             Prentice-Hall Inglewood Cliffs NJ

Antoine Constants CH3OH
A.  16.4948
B.  3593.38
C.  -35.2249

Source:  Introduction to Materials & Energy Balances
             G. V. Reklaitis

From Various Sources:
N2:                   Mole Wt-28.02
CH3OH:          Mole Wt-32.04
                        dH(vap)=1101.7 kJ/kg at Boiling point 337.9 K
                        Boiling Point 337.9 K
                        Freezing Point 175.26 K
                        Cp(liquid)=2577.7 kJ/Kg K

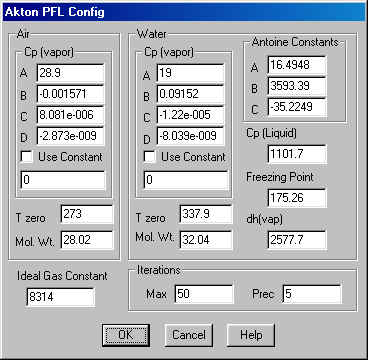

Akton PFL Config Dialog Box
